Tinytag Connect Environmental Data Logging System

  • Central data management for Tinytag Radio and LAN loggers
  • Temperature, RH, count, low current and voltage
  • Remote data access with wireless and Ethernet connectivity
  • Global system view: Desktop Viewer
  • Reliable data
View Radio data loggers >

About Tinytag Connect

Tinytag Connect is a central data management feature for Tinytag Ultra Radio, Plus Radio and LAN data loggers. Users are able to remotely access the data being recorded in their application from the convenience of their own desk. Multiple monitoring points can be easily accessed by any permitted user on a LAN, or over the internet by setting up VPN access to the computer running the system.

Tinytag_Connect_Oveview
Ultra Radio, Plus Radio & Plus LAN data loggers monitor temperature, RH, voltage, current, count
Radio data loggers configure to form a mesh network
LAN data loggers send data directly to Tinytag Explorer Connect
Screenshot of Tinytag Explorer Connect software

Tinytag Connect: how it works

Tinytag Connect provides common functionality across Ultra Radio, Plus Radio and Plus LAN loggers, providing remote network access to data being recorded in a monitoring application.

Data from the loggers is collected automatically, and stored and managed by the Tinytag Connect Gateway. Data is then presented in the Tinytag Explorer Connect software which is used to configure the loggers and manage the system. A viewing pane presents a global system view.

Information can also be displayed in Desktop Viewer, a read-only tool which provides a visual representation of the system - data being recorded by the loggers, and alerts when any are out of contact - with option to customise the background with floorplans/images.

Radio and LAN data loggers can be mixed and matched within a system to meet particular application, site layout and infrastructure requirements Monitoring parameters include temperature, RH, low voltage, current and count inputs; and a there is a choice of indoor or outdoor units.

Please send us details of your application using the form on the right, and we will be able to advise on the best solution and provide a quotation.

Features

  • Automatic data collection
  • Radio and Ethernet connectivity
  • Global system view: Desktop Viewer
  • Remote data access via a LAN
  • Robust data communications
  • Easy to use and flexible

Connect enabled data loggers

Ultra Radio data loggers
Plus Radio data loggers
Plus LAN data loggers

Datasheets & Documents

Tinytag Connect User Manual Desktop Viewer User Guide Tinytag Explorer Minimum Specifications Moving a Connect Master Gateway Tinytag_Connect_Overview

Case studies

Weald & Downland living museum monitors collections and exhibition space Ford Motor Company monitors engine manufacturing plants Tinytags used at medical research facility in Tanzania Tinytags Ultra Radio loggers play key role in preventive conservation Tinytag Radio data logging system provides warehouse temperature monitoring Radio data loggers monitor temp/RH in a pharmaceutical warehouse Tinytag Radio data loggers monitor beer temperature throughout the cold chain Igloo warms to the benefits of Radio Loggers
To find out more call us on
Message us online

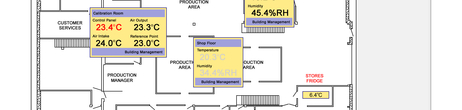

Tinytag Desktop Viewer >

A useful read-only tool which provides a visual representation of the status of a Connect system - displaying the data being recorded by the loggers and showing alerts when any are out of contact.

  • Clear visual representation of data logger status

  • Customise background with floorplans/images

  • Visual alarm display

  • Read only software tool

  • User Access Control: no access to Connect system configuration/set-up

Download Desktop Viewer Brochure
